4.3 انچ چوڑا درجہ حرارت TFT LCD ماڈیول

What are the competitive advantages of the Victronix 4.3 inch Wide Temperature TFT LCD Module in the competitive situation of TFT Module manufacturers? At first, its wide viewing angle of 80° in all directions and a high contrast ratio of 800:1 make it more suitable for harsh industrial. Secondly, it has a high brightness of 1000 cd/m² and an 8-LED array with a 50,000-hour lifespan (to 50% initial brightness) and 80% uniformity, ensuring that it can be used for clarity and hours of use in different lighting situations. Besides, it passes stringent reliability tests (thermal shock, humidity, drop tests) and complies with RoHS environmental standards so that can operate seamlessly across an extended temperature range (-30°C to +80°C).

This Victronix 4.3 inch TFT Module is widely used in industrial HMI, medical devices, transportation systems, and portable instrumentation where readability, wide-temperature operation, and mechanical resilience are critical.

General Specifications

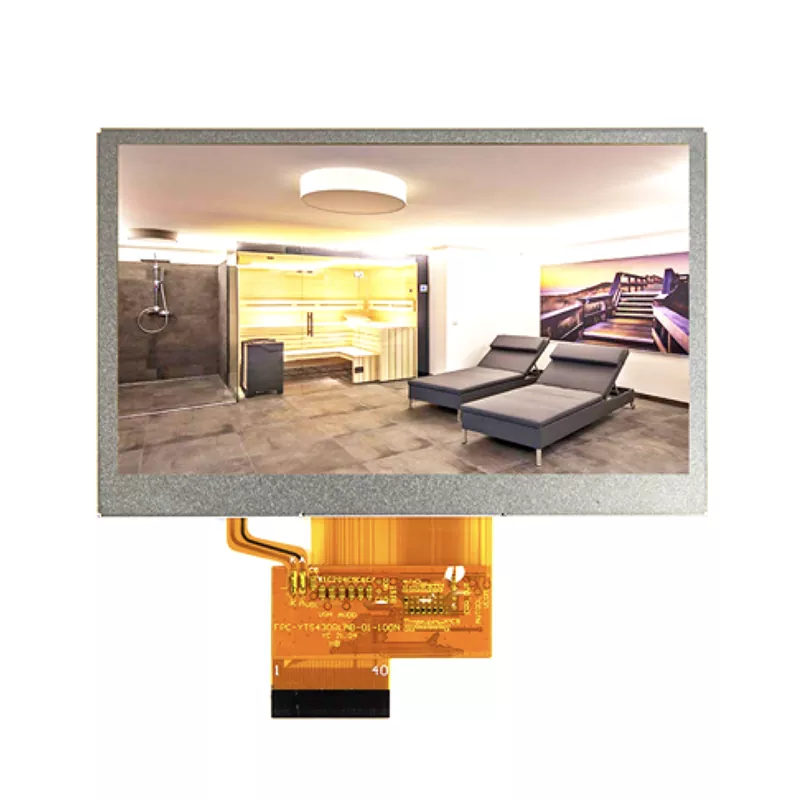

VXT430MPSA-16 4.3 inch Wide Temperature TFT LCD Module is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit . The 4.3 display area contains 480 x (RGB) x 272 pixels and can display up to 16.7M colors. This product accords with ROHS environmental Criterion.

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder .

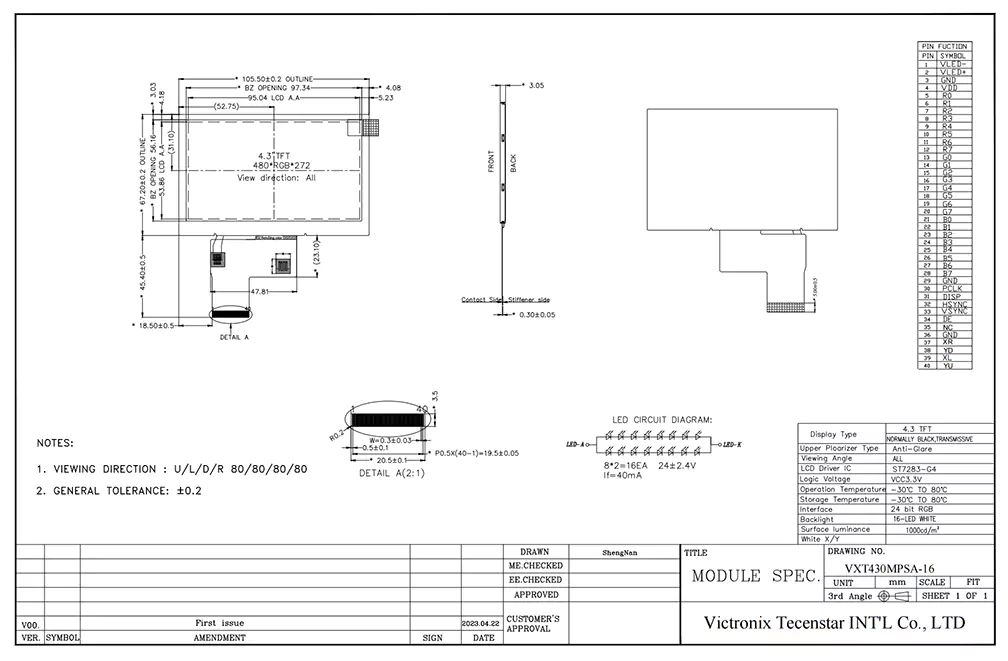

Outline Drawing
