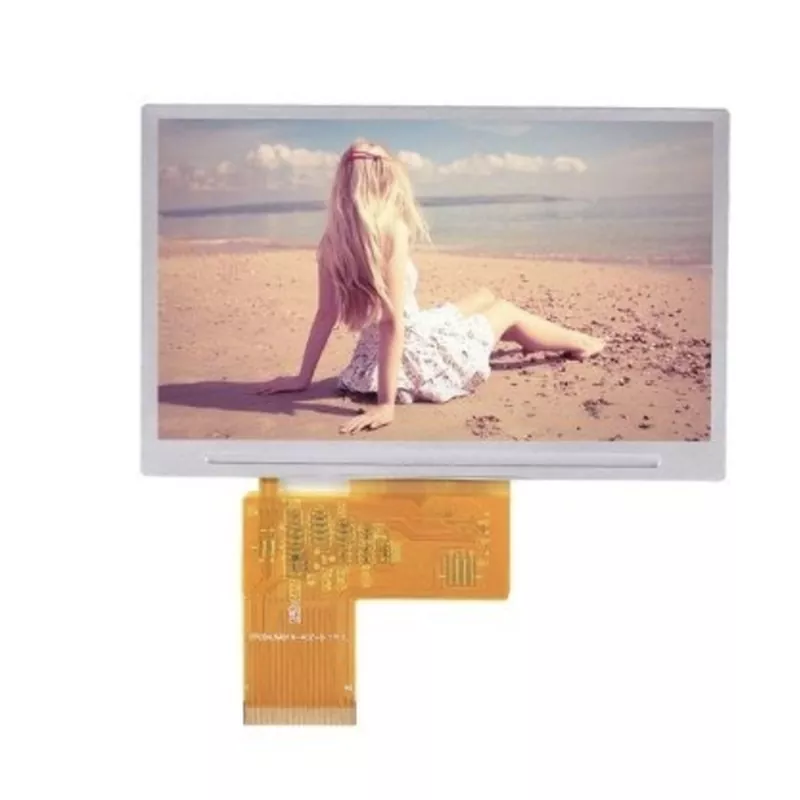

4.3 انچ 800x480 وسیع درجہ حرارت آؤٹ ڈور TFT ماڈیول

TFT Module can be found everywhere in life, what makes the Victronix 4.3 inch 800x480 Wide Temperature Outdoor TFT Module different from other manufacturers? At first, it provides customers with a premium display with an 800×480 resolution with 16.7M colors, 80° viewing angle (all directions), 800 cd/m² typical brightness, and 800:1 contrast ratio. Secondly, it passes rigorous reliability tests (including thermal shock, vibration, and ESD ±8kV protection) to operate in extreme temperatures from -30°C to +80°C. Besides, it not only utilizes a versatile 24-bit parallel RGB interface (40-pin), supporting both HV and DE sync modes for easy integration with common controllers but also has a 16-LED white backlight system with a typical lifespan of 50,000 hours (to 50% initial brightness), minimizing maintenance needs. These make it more suitable for harsh industrial and outdoor settings.

This Victronix 4.3 inch TFT module is widely used in Industrial HMIs, test and measurement equipment, process control panels, portable devices, and other applications requiring a durable, high-visibility display in challenging environments.

General Specifications

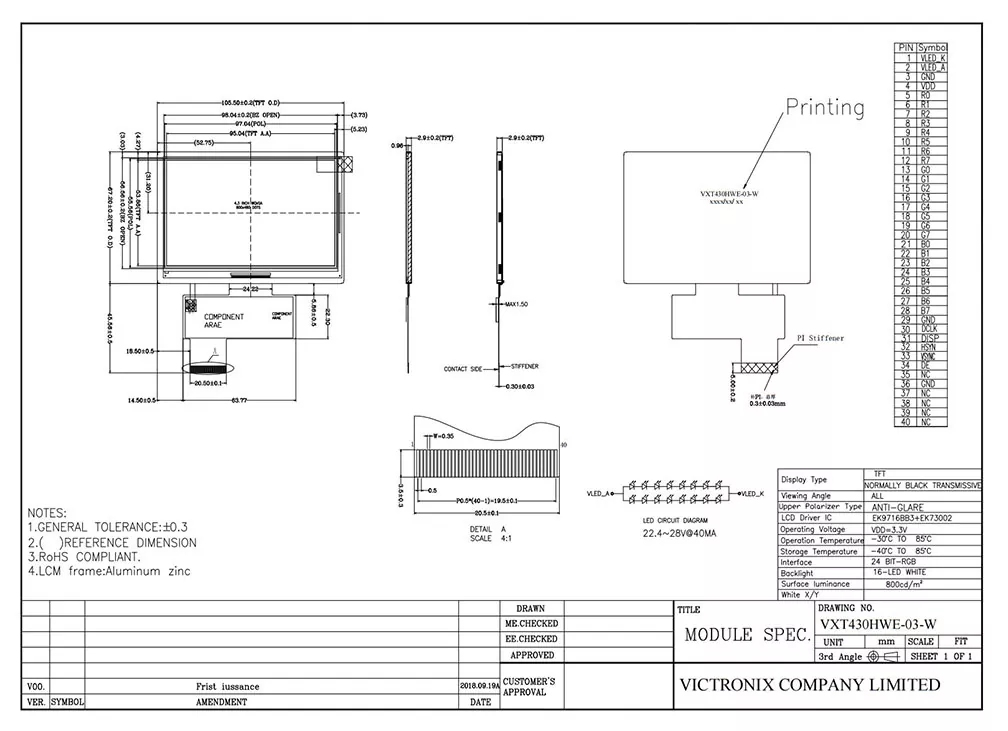

Outline Drawing
